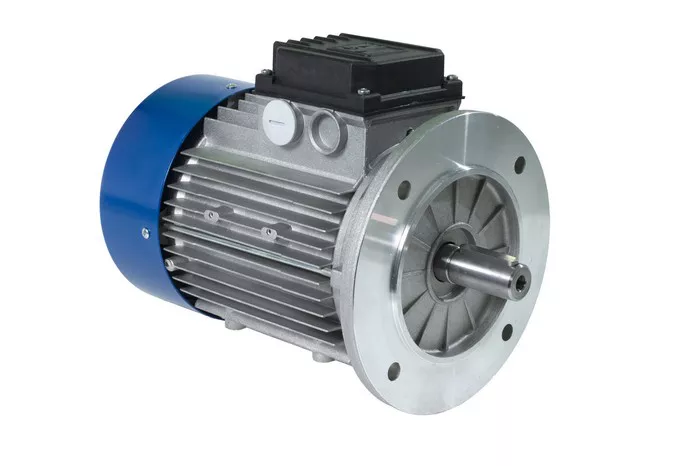

The Double-Squirrel Cage Induction Motor is a specialized variant of the widely used squirrel cage induction motor designed to enhance starting performance and overall efficiency in various industrial applications. This motor type incorporates a unique rotor construction, comprising two concentric squirrel cages with distinct electrical characteristics, allowing for improved starting torque and reduced starting current. Understanding the fundamental working principles and advantages of the Double-Squirrel Cage Induction Motor provides valuable insight into its application in modern electrical machinery.
What Is Squirrel Cage Induction Motor
Before delving into the specifics of the double-squirrel cage design, it is crucial to grasp the core principle of the squirrel cage induction motor itself. A squirrel cage induction motor is a type of asynchronous motor widely favored for its simplicity, ruggedness, and reliability. Its rotor consists of conductive bars short-circuited by end rings, resembling a “squirrel cage.” When the stator’s three-phase alternating current creates a rotating magnetic field, currents are induced in the rotor bars, producing torque that drives the motor shaft.
Why Double-Squirrel Cage? Understanding the Need
Although the squirrel cage motor is robust and widely used, it faces limitations during starting conditions. At start-up, the motor experiences a high inrush current but low starting torque, which can be problematic in heavy-load scenarios. The double-squirrel cage motor addresses these challenges by employing two sets of rotor bars with different resistances and reactances.
The inner cage typically has bars of lower resistance and higher reactance, while the outer cage bars have higher resistance and lower reactance. This configuration allows the motor to behave differently under various operating speeds. During startup, the high resistance outer cage dominates, increasing starting torque and limiting starting current. As the motor speeds up, the low resistance inner cage takes over, improving running efficiency.
Construction of Double-Squirrel Cage Rotor
The rotor of a double-squirrel cage induction motor consists of two separate squirrel cages mounted concentrically within the rotor core. Each cage has different bar shapes and sizes, carefully designed to produce the desired electrical characteristics:
- Outer Cage: This cage has bars made of a material with relatively high resistance, often thin and narrow, with low inductance. Its primary function is to provide high resistance at standstill, which translates to higher starting torque and reduced starting current.
- Inner Cage: The inner cage has bars of low resistance and relatively high inductance, typically thicker and embedded deeper in the rotor slots. It carries the current during normal running conditions to minimize power losses and improve motor efficiency.
The combination of these two cages allows the rotor to modify its impedance dynamically, responding efficiently to different load and speed conditions.
How Does Double-Squirrel Cage Induction Motor Work
The motor operation starts like any other squirrel cage induction motor. When the stator winding is energized with a three-phase supply, it creates a rotating magnetic field. This rotating field induces current in the rotor cages according to Faraday’s law of electromagnetic induction.
At startup, since the rotor speed is zero, the slip is 1 (maximum). The high resistance outer cage bars dominate the rotor circuit, which limits the current but increases the torque, allowing the motor to start under heavy loads effectively. As the rotor accelerates, the slip decreases, reducing the rotor frequency. Consequently, the reactance of the outer cage increases, limiting current flow in it. Meanwhile, the inner cage with lower resistance and higher reactance begins to conduct more current. This transition ensures the motor runs efficiently with lower losses once at operating speed.
Advantages of Double-Squirrel Cage Induction Motor
The double-squirrel cage motor design offers several operational and performance benefits, which make it desirable for specific industrial applications:
- High Starting Torque: The high resistance outer cage allows the motor to generate greater starting torque compared to conventional squirrel cage motors.
- Reduced Starting Current: By controlling the rotor current through the outer cage resistance, the motor limits the starting current, thereby minimizing electrical stress on the power supply system.
- Improved Running Efficiency: Once the motor reaches normal operating speed, the inner low-resistance cage takes over, reducing rotor losses and improving overall efficiency.
- Simple and Rugged Construction: Despite its improved performance, the double-squirrel cage motor retains the inherent mechanical simplicity and durability of squirrel cage motors.
- Low Maintenance: As with other squirrel cage motors, this motor type requires minimal maintenance due to the absence of brushes or slip rings.
Applications of Double-Squirrel Cage Induction Motor
Due to its excellent starting characteristics and robust construction, the double-squirrel cage induction motor is widely used in industries where high starting torque and low inrush current are essential. Typical applications include:
- Pumps and compressors
- Conveyors and crushers in mining and material handling industries
- Fans and blowers
- Centrifugal machines
- Machine tools requiring high starting torque
The motor’s ability to handle heavy starting loads while maintaining efficiency at running speed makes it an ideal choice in such demanding environments.
Comparison with Other Motor Types
It is useful to compare the double-squirrel cage motor with other common motor types to appreciate its unique advantages:
- Vs. Standard Squirrel Cage Motor: Standard squirrel cage motors have relatively lower starting torque and higher starting current. The double-squirrel cage motor improves on these by incorporating two rotor cages, as explained earlier.
- Vs. Wound Rotor Induction Motor: Wound rotor motors allow external resistance to be introduced during startup to control current and torque, offering excellent control but at a higher cost and maintenance due to slip rings and brushes. Double-squirrel cage motors offer a simpler, maintenance-free alternative with fixed resistance characteristics.
- Vs. Synchronous Motors: While synchronous motors can provide constant speed and high efficiency, they require more complex control and excitation systems. Double-squirrel cage motors offer a rugged and maintenance-free solution suitable for many industrial loads.
Design Considerations and Challenges
Designing a double-squirrel cage rotor requires careful attention to several electrical and mechanical factors:
- Material Selection: The resistance and reactance of rotor bars must be controlled precisely, often by varying the bar cross-section and using different alloys or copper vs. aluminum.
- Thermal Management: Higher resistance in the outer cage generates more heat during starting; hence, adequate cooling is necessary to avoid damage.
- Mechanical Strength: Rotor bars must withstand centrifugal forces and mechanical vibrations, requiring robust assembly techniques.
- Manufacturing Complexity: The dual cage construction is more complex than a single cage, which can increase manufacturing cost and time.
Testing and Performance Evaluation
Performance testing of double-squirrel cage motors involves evaluating starting torque, starting current, slip characteristics, and efficiency. Key tests include:
- Locked Rotor Test: Measures starting torque and current to ensure compliance with design specifications.
- No-Load and Load Tests: Determine efficiency and operational characteristics under different load conditions.
- Thermal Tests: Assess temperature rise during startup to confirm adequate cooling and thermal stability.
Accurate testing ensures the motor performs reliably in the intended application.
Maintenance and Troubleshooting
Like other squirrel cage motors, the double-squirrel cage motor requires minimal routine maintenance. However, key points to monitor include:
- Regular inspection of bearings and lubrication
- Monitoring for unusual vibrations or noise, which could indicate rotor bar damage
- Electrical testing for insulation integrity and winding condition
Early detection of faults can prevent costly downtime. Understanding the rotor design helps technicians diagnose specific issues related to the double-cage rotor configuration.
Conclusion
The double-squirrel cage induction motor stands out as an ingenious engineering solution to the common problems faced by standard squirrel cage motors during startup. By incorporating two concentric cages with different electrical properties, it achieves higher starting torque, lower starting current, and efficient running performance without sacrificing the simplicity and robustness inherent to squirrel cage designs. Its widespread use in demanding industrial applications attests to its effectiveness and reliability.
For engineers and professionals interested in exploring related motor technologies, resources on Wound Rotor Induction Motor provide an excellent complement to the knowledge of double-squirrel cage motors.
Understanding this motor type’s construction, operation, and advantages is essential for selecting the right motor for applications where starting conditions are critical, ensuring long-term performance and efficiency.
