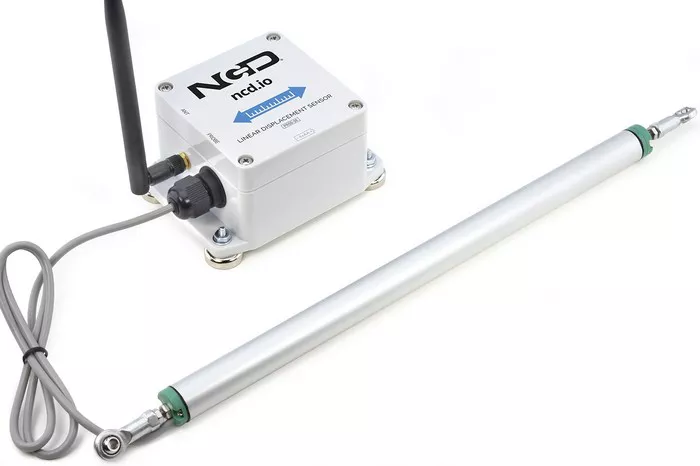

Displacement sensors are pivotal components in the field of mechanical engineering, robotics, manufacturing, and automation. These sensors provide precise measurements of the movement or change in position of an object relative to a reference point. By capturing the displacement, engineers and technicians can monitor, control, and optimize systems for enhanced accuracy and performance. This article delves deeply into the types, working principles, applications, and nuances of displacement sensors, providing a comprehensive understanding that is essential for both practitioners and learners in engineering disciplines.
What Are Displacement Sensors
At its core, a displacement sensor measures the distance an object moves from a fixed position or reference point. Unlike simple position indicators, these sensors provide quantitative feedback that is often used in automated control systems. Displacement sensors are broadly categorized based on the nature of the measurement they provide: linear displacement (straight-line movement) and angular displacement (rotational movement).
The output of displacement sensors can be in various forms such as electrical signals, digital data, or mechanical readouts, depending on the sensor technology. These outputs enable integration with control systems like PLCs (Programmable Logic Controllers), CNC (Computer Numerical Control) machines, and other industrial equipment.
Classification of Displacement Sensors
Displacement sensors are generally classified into two main groups: contact and non-contact sensors.
Contact Displacement Sensors
Contact sensors physically touch the object whose displacement is being measured. They convert mechanical movement into an electrical signal or a mechanical reading. Common types include:
- Linear Variable Differential Transformers (LVDTs): Though non-contact in terms of the core measurement, they require a core attached to the moving object.
- Potentiometric Sensors: Use a sliding contact to measure displacement as a change in resistance.
- Dial Indicators and Mechanical Gauges: Traditional mechanical contact sensors used for direct visual measurements.
Non-Contact Displacement Sensors
These sensors measure displacement without physical contact, making them ideal for delicate, high-speed, or hazardous applications. Types include:
- Capacitive Sensors: Measure changes in capacitance caused by the movement of a target object.
- Inductive Sensors: Detect changes in inductance due to the position of a metallic target.
- Optical Sensors: Use light beams, lasers, or cameras to detect displacement.
- Ultrasonic Sensors: Employ high-frequency sound waves to calculate distance changes.
How Do Displacement Sensors Work?
The fundamental principle behind displacement sensors is the translation of a physical movement into a measurable and interpretable signal. The method by which this occurs varies with sensor technology, but the essence is the same: detecting change relative to a reference.
Working Principle of Contact Sensors
- Potentiometric Sensors: When the object moves, a wiper connected to the object slides along a resistive track, changing the output voltage proportional to displacement.
- LVDTs: They consist of a movable ferromagnetic core inside a set of coils. The position of the core changes the magnetic coupling between coils, inducing voltage changes that correlate with displacement.
Working Principle of Non-Contact Sensors
- Capacitive Sensors: The sensor forms a capacitor with the target object acting as one plate. Movement changes the distance or overlapping area, altering the capacitance which is then converted to displacement.
- Inductive Sensors: When a metallic object moves closer or farther from a coil, it changes the coil’s inductance. This change is measured and correlated with the position.
- Optical Sensors: Often use triangulation, interferometry, or time-of-flight methods where reflected light or laser beams provide data about distance.
- Ultrasonic Sensors: Emit ultrasonic pulses and measure the time it takes for the echo to return from the target. The distance is calculated from the speed of sound and time delay.
Applications of Displacement Sensors
Displacement sensors find extensive applications across industries:
Industrial Automation
Precision measurement of position is critical in manufacturing processes such as CNC machining, robotic arms, and conveyor belt monitoring. Displacement sensors ensure components are assembled correctly and machinery operates within specified tolerances.
Automotive Engineering
They monitor piston positions, throttle movement, suspension travel, and crash detection systems, enabling safety and performance optimizations.
Structural Health Monitoring
Sensors measure minute displacements in bridges, buildings, and other structures to detect deformation or damage early.
Medical Equipment
In medical devices like MRI machines and surgical robots, precise positioning is vital for safe and effective operation.
Aerospace and Defense
Displacement sensors contribute to navigation systems, landing gear position feedback, and missile guidance.
Advantages and Limitations
Advantages
- High precision and repeatability for accurate displacement measurement.
- Wide range of sensor types for various applications and environments.
- Non-contact sensors prevent wear and reduce mechanical interference.
- Compatibility with digital systems enables automation and data logging.
Limitations
- Contact sensors may cause wear on the measured object or sensor itself.
- Non-contact sensors can be affected by environmental factors such as dust, temperature, or electromagnetic interference.
- Some sensors require complex calibration and signal processing.
- Cost and complexity can be high for certain sensor technologies.
Factors to Consider When Selecting a Displacement Sensor
Choosing the appropriate displacement sensor involves analyzing key parameters including:
- Measurement Range: The maximum and minimum displacement that must be measured.
- Resolution: The smallest detectable displacement increment.
- Environmental Conditions: Temperature, humidity, dust, and vibration levels.
- Speed of Measurement: Whether the sensor must measure static or dynamic displacement.
- Material and Surface: Conductivity, reflectivity, and texture of the target object.
- Output Type: Analog, digital, or wireless communication requirements.
Conclusion
Displacement sensors play an indispensable role in modern engineering, providing critical data on the position and movement of objects. By converting physical displacement into measurable electrical or digital signals, they enable automation, enhance precision, and improve safety across a wide spectrum of industries. Understanding the types, working principles, and applications of these sensors allows engineers to select and implement the right solutions tailored to specific operational needs. As technology advances, displacement sensors will continue to become more sophisticated, offering greater accuracy and versatility in an increasingly automated world.
FAQs
What is the difference between a displacement sensor and a proximity sensor?
Displacement sensors measure the exact amount of movement or position change, providing quantitative data. Proximity sensors simply detect the presence or absence of an object within a certain range, usually without giving precise distance information.
Can displacement sensors work in harsh environments?
Yes, many displacement sensors are designed to operate in harsh conditions. For example, inductive sensors are commonly used in dirty or oily environments due to their robustness. However, environmental factors should always be considered when selecting a sensor type.
What is the typical accuracy of displacement sensors?
The accuracy varies widely depending on the sensor technology and application but can range from micrometers (μm) in high-precision sensors like LVDTs and laser sensors, to millimeters or more in simpler devices.
How do non-contact displacement sensors avoid measurement errors?
Non-contact sensors use various methods such as shielding, filtering, and signal processing algorithms to reduce interference from environmental factors like dust, vibration, and temperature fluctuations.
Are displacement sensors expensive?
Costs vary greatly. Simple potentiometric sensors can be quite affordable, while high-precision laser or fiber optic displacement sensors can be costly due to their complexity and precision capabilities.
