In the world of analytical science and mechanical engineering, precision and accuracy in measurement are paramount. Among the various tools used to analyze chemical substances, mass spectrometers stand out for their capability to identify and quantify molecules based on their mass-to-charge ratio. However, to fully appreciate their function, it is essential to distinguish between the mass spectrometer as a whole system and the detector, which is a crucial component within it. This article explores the differences between a mass spectrometer and a detector, focusing on their roles, working principles, and their interplay within instrumentation setups.
What is a Mass Spectrometer?

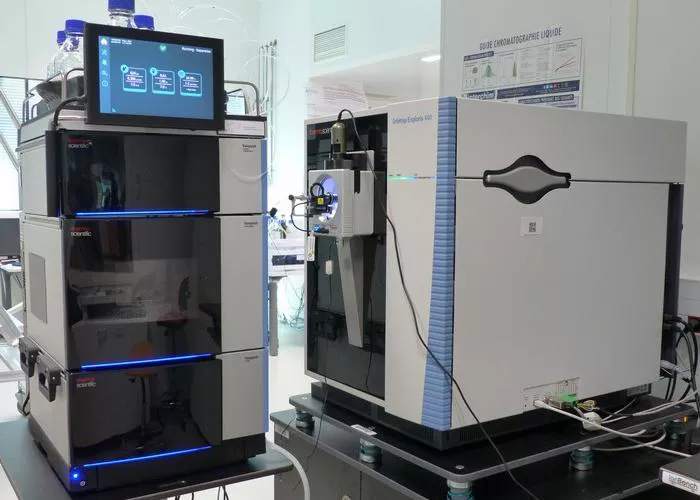

A mass spectrometer is a sophisticated analytical instrument used to measure the masses of particles, primarily atoms and molecules, to identify chemical composition and structure. The fundamental operation involves ionizing chemical compounds to generate charged particles (ions), separating those ions based on their mass-to-charge ratio (m/z), and detecting them to produce a spectrum representing the molecular weights present in the sample.
Mass spectrometers have evolved into several types, each with unique ion separation and detection mechanisms. Popular types include quadrupole mass spectrometers, ion trap mass spectrometers, and Time-of-Flight (TOF) mass spectrometers. Each variant caters to different analytical needs, sensitivity requirements, and sample complexities.
The Role of the Detector in Mass Spectrometry
The detector, while often overshadowed by the more widely recognized mass analyzer, is a vital component of the mass spectrometer. Its primary function is to measure the abundance of ions after they have been separated by the mass analyzer. The detector converts the physical impact of ions into an electrical signal that can be processed and displayed as a mass spectrum.
Detectors vary based on the mass spectrometer type and desired performance. Common types include electron multipliers, microchannel plates, Faraday cups, and secondary electron multipliers. These detectors differ in sensitivity, dynamic range, and noise levels, which directly impact the accuracy and precision of the resulting data.
Key Differences Between Mass Spectrometer and Detector
To clarify the distinction, consider the mass spectrometer as the entire system, encompassing several sub-systems working together to analyze a sample. The detector is one such subsystem focused solely on sensing and quantifying ions. Below are the primary differences:
- Scope and Function: The mass spectrometer includes ion sources, mass analyzers, vacuum systems, electronics, and detectors. The detector is specifically responsible for capturing and converting ion impacts into measurable signals.
- Complexity: The mass spectrometer is complex, integrating multiple technologies for ionization, separation, and detection. The detector is a specialized sensor, designed to perform one critical task within the broader system.
- Physical Placement: The detector is positioned at the end of the ion path, where ions exit the mass analyzer. The mass spectrometer encompasses all stages from sample introduction to signal processing.
- Output: The detector generates an electrical signal proportional to ion abundance. The mass spectrometer converts these signals into interpretable mass spectra, often accompanied by software analysis.
How Different Mass Spectrometer Types Affect Detector Selection
The choice of detector depends heavily on the type of mass spectrometer and the application. For example:
- Quadrupole Mass Spectrometers: Known for their ability to filter ions based on m/z ratios using oscillating electric fields, they commonly use electron multiplier detectors for sensitive ion detection. The quadrupole’s scanning capabilities require a detector with rapid response times.
- Ion Trap Mass Spectrometers: These instruments trap ions in a confined space and sequentially eject them for detection. Detectors need to accommodate varying ion flux over time, often using electron multipliers or microchannel plates.
- Time-of-Flight Mass Spectrometers: TOF instruments separate ions based on their flight time through a field-free region. Due to the rapid nature of ion arrival, detectors such as microchannel plates with fast response and high gain are preferred.
Each detector’s characteristics influence the overall sensitivity, resolution, and accuracy of the mass spectrometry system.
The Importance of Detector Performance in Mass Spectrometry
Detector performance is fundamental to the quality of data generated. Key parameters include:
- Sensitivity: Ability to detect low ion counts, critical for trace analysis.
- Dynamic Range: The range over which ion abundance can be accurately measured.
- Noise Level: Lower noise improves signal-to-noise ratio, enhancing data clarity.
- Response Time: Faster response enables the analysis of rapidly changing ion streams.
Failures or limitations in detector performance can lead to poor spectral quality, misidentification, or quantification errors, which highlights why the detector is indispensable despite being only one part of the larger mass spectrometer system.
Integration of Instrumentation Components in Mass Spectrometry
Mass spectrometry instrumentation is a coordinated assembly of subsystems including ion sources, mass analyzers, detectors, vacuum pumps, and data processing units. This integration enables sophisticated analysis of complex samples across industries such as pharmaceuticals, environmental monitoring, and petrochemicals.
Instrument manufacturers constantly innovate detector technologies to improve performance metrics, adapting to new scientific challenges. Moreover, advancements in instrumentation design aim to optimize the interplay between detectors and analyzers for enhanced throughput and accuracy.
Conclusion
While the terms “mass spectrometer” and “detector” are sometimes used interchangeably, they represent different elements within the analytical chain. The mass spectrometer is a comprehensive instrument designed to ionize, separate, and analyze molecules, whereas the detector is the specialized component responsible for sensing ions and generating data signals.
Understanding their differences is essential for selecting the right equipment, troubleshooting performance issues, and optimizing analytical workflows. Advances in detector technology continue to propel mass spectrometry capabilities forward, driving innovations across scientific disciplines.
FAQs
What is the main function of a detector in a mass spectrometer?
The detector’s main function is to capture ions separated by the mass analyzer and convert their impact into an electrical signal for measurement and data processing.
Can a mass spectrometer operate without a detector?
No. The detector is essential because, without it, the separated ions would not be quantified or identified, rendering the mass spectrometer ineffective.
How does a quadrupole mass spectrometer differ from a Time-of-Flight mass spectrometer?
Quadrupole mass spectrometers filter ions using oscillating electric fields to select specific mass-to-charge ratios sequentially, while Time-of-Flight mass spectrometers measure ions based on the time they take to travel a set distance, allowing simultaneous detection of all ion masses.
What types of detectors are commonly used in mass spectrometry?
Common detectors include electron multipliers, microchannel plates, Faraday cups, and secondary electron multipliers, each selected based on the type of mass spectrometer and analytical requirements.
How does detector sensitivity affect mass spectrometry results?
Higher sensitivity allows detection of low abundance ions, improving the detection limit and enabling analysis of trace compounds with greater accuracy.
